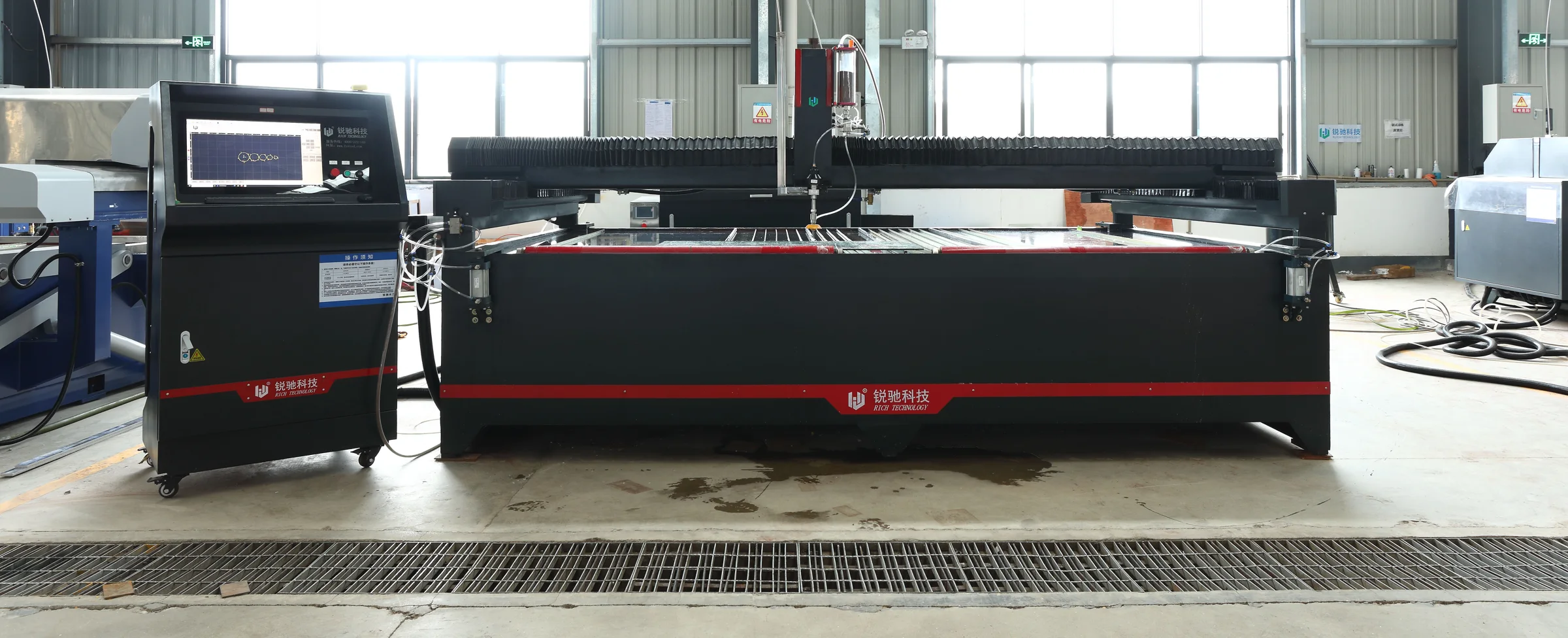

Three-Axis Series
3-Axis Waterjet
The three-axis workhorse: straight vertical cutting on a precision cast-iron beam.
Installed in the continental US from $88,000 $76,900 The First Ten · price your build →
0°
Pendulum angle
5.9in
150 mm
Max thickness
up to 87,000psi
up to 600 MPa
Intensifier
1–2
Cutting heads

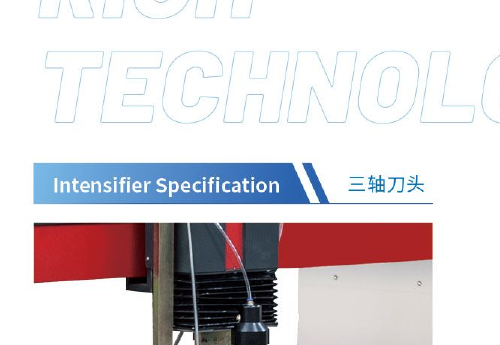

01
Pure vertical cutting head
A 0° pendulum head for straight vertical cuts: easy to handle and easy to maintain.
02
Twin-head option
Two cutting heads can run together on one machine for higher throughput on repeat parts.
03
Three-point altimetry
Three-point height measurement compensates for undulation across the cut surface.
04
Intensifier up to 87,000 psi (600 MPa)
Indirect hydraulic pressurization with PLC self-diagnosis; optional 87,000 psi (600 MPa) ultra-high-pressure unit.

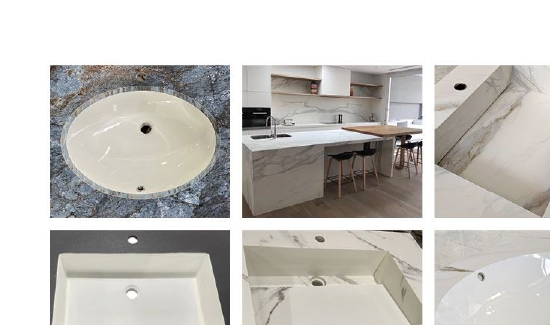

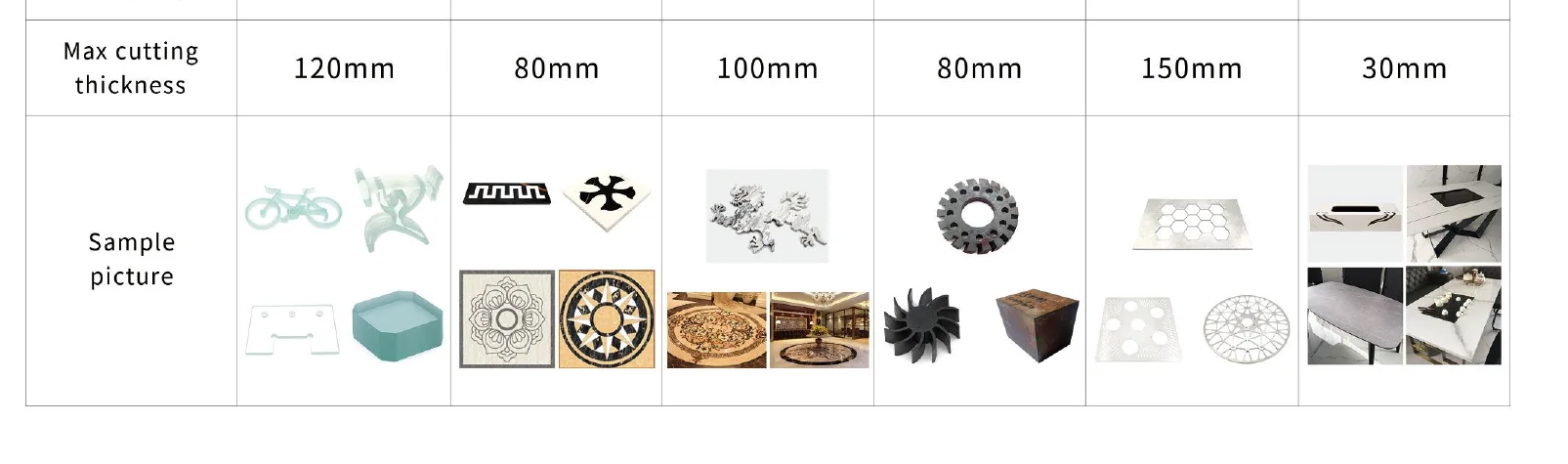

What it cuts
6 materials, one platform.
Marble & Granite· up to 3.9 in (100 mm)
Porcelain Slab· up to 1.2 in (30 mm)
Ceramic· up to 3.1 in (80 mm)
Glass· up to 4.7 in (120 mm)
Aluminum· up to 5.9 in (150 mm)
Steel· up to 3.1 in (80 mm)
Specifications
The full spec.
Cutting head (3-axis)
| Pendulum angle | 0° (vertical) |
| Heads | Single or twin |
| Spindle cooling | Water-cooled |
Structure & control
| Beam | High-precision cast iron |
| Altimetry | Three-point, real time |
| Abrasive valve | Pneumatic, no water return |
| Controller | CNC, 19" industrial touchscreen |
Intensifier / supporting
| Pressurization | Indirect hydraulic, dual oil circuit |
| Ultra-high option | 87,000 psi (600 MPa) |
| Abrasive feed | Pneumatic, 441 lb (200 kg) capacity |
| Inlet water | Softener, TDS ≤ 100 mg/L |
Cutting head
3-axis (single)3-axis (twin)
Intensifier
Standard87,000 psi (600 MPa)
Add-ons
Auto abrasive supplyWater softenerWaste-abrasive cleaning
Cutting table sizes
| Code | X (mm · in) | Y (mm · in) | Structure |
|---|---|---|---|
| RC2015 | 78.7 in · 2000 mm | 59.1 in · 1500 mm | Bridge |
| RC3015 | 118.1 in · 3000 mm | 59.1 in · 1500 mm | Bridge |
| RC3020 | 118.1 in · 3000 mm | 78.7 in · 2000 mm | Bridge |
| RC4020 | 157.5 in · 4000 mm | 78.7 in · 2000 mm | Bridge |
Larger formats to 2.3 × 11.3 m available.
Applications
What it's used for.
Request a quote for the 3-Axis Waterjet.
Tell us the materials, thickness and slab sizes you run, and we'll configure the machine and send a quote.
