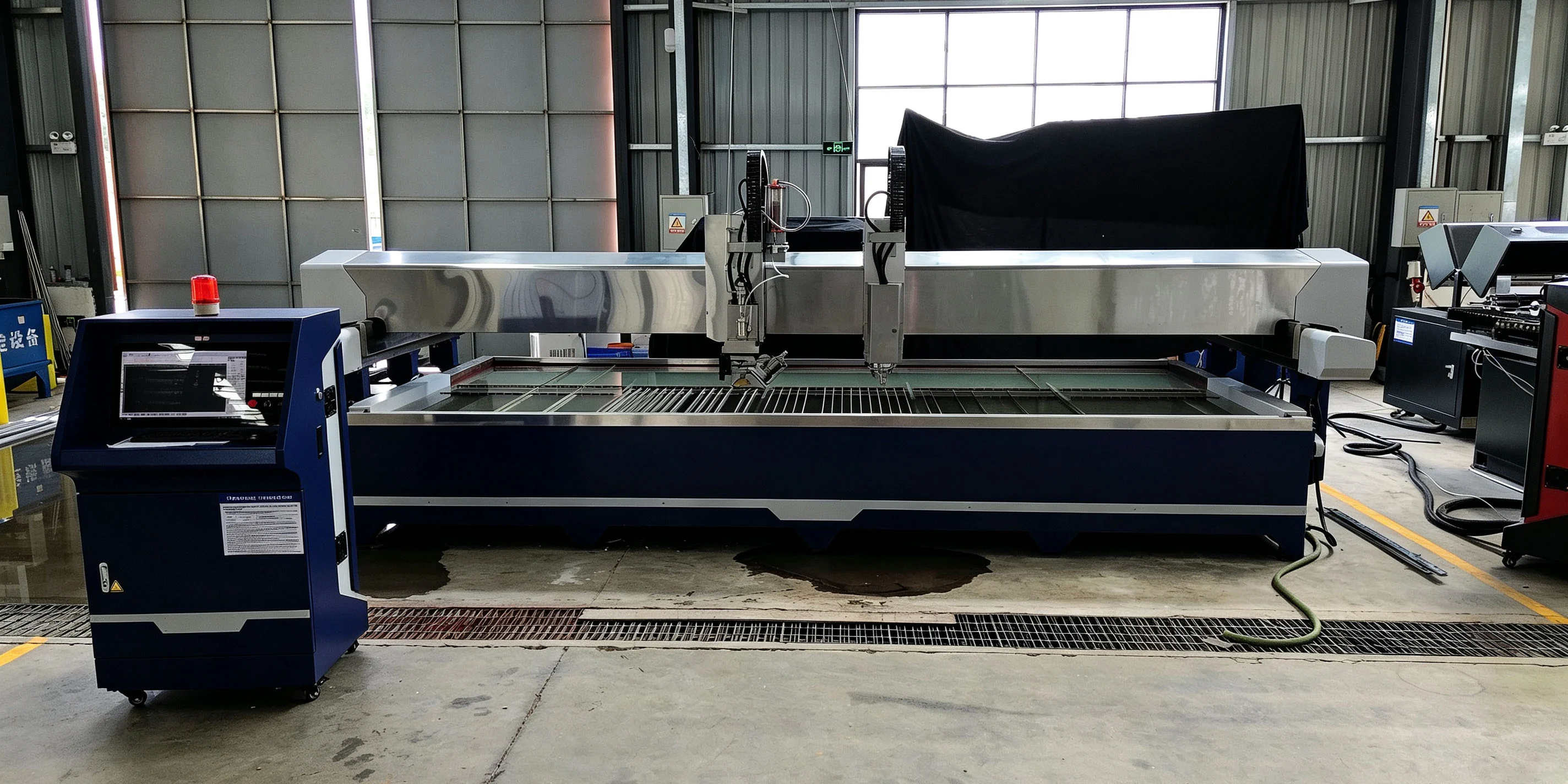

AC 5-Axis Waterjet
Five-axis waterjet cutting with a self-developed IP68 waterproof head.
Installed in the continental US from $109,500 $95,900 The First Ten · price your build →
IP68 waterproof AC head
A sealed, waterproof and dustproof five-axis cutting head that bevels 0°–60°, for 45° countertop splices and angled edge work.
Automatic basin cutting paths
Needle-type probing measures the sink or basin and generates the cutting path automatically; the bed can also be photographed to generate paths from the image.
Real-time altimetry
The cutting head measures and maintains height as it runs, compensating for undulation in the slab surface so the jet stays consistent across the sheet.
Intensifier up to 87,000 psi (600 MPa)
Indirect hydraulic pressurization with PLC self-diagnosis and a maintenance-free accumulator. An optional 87,000 psi (600 MPa) unit adds a 60 hp (45 kW) main motor and dual oil circuit.

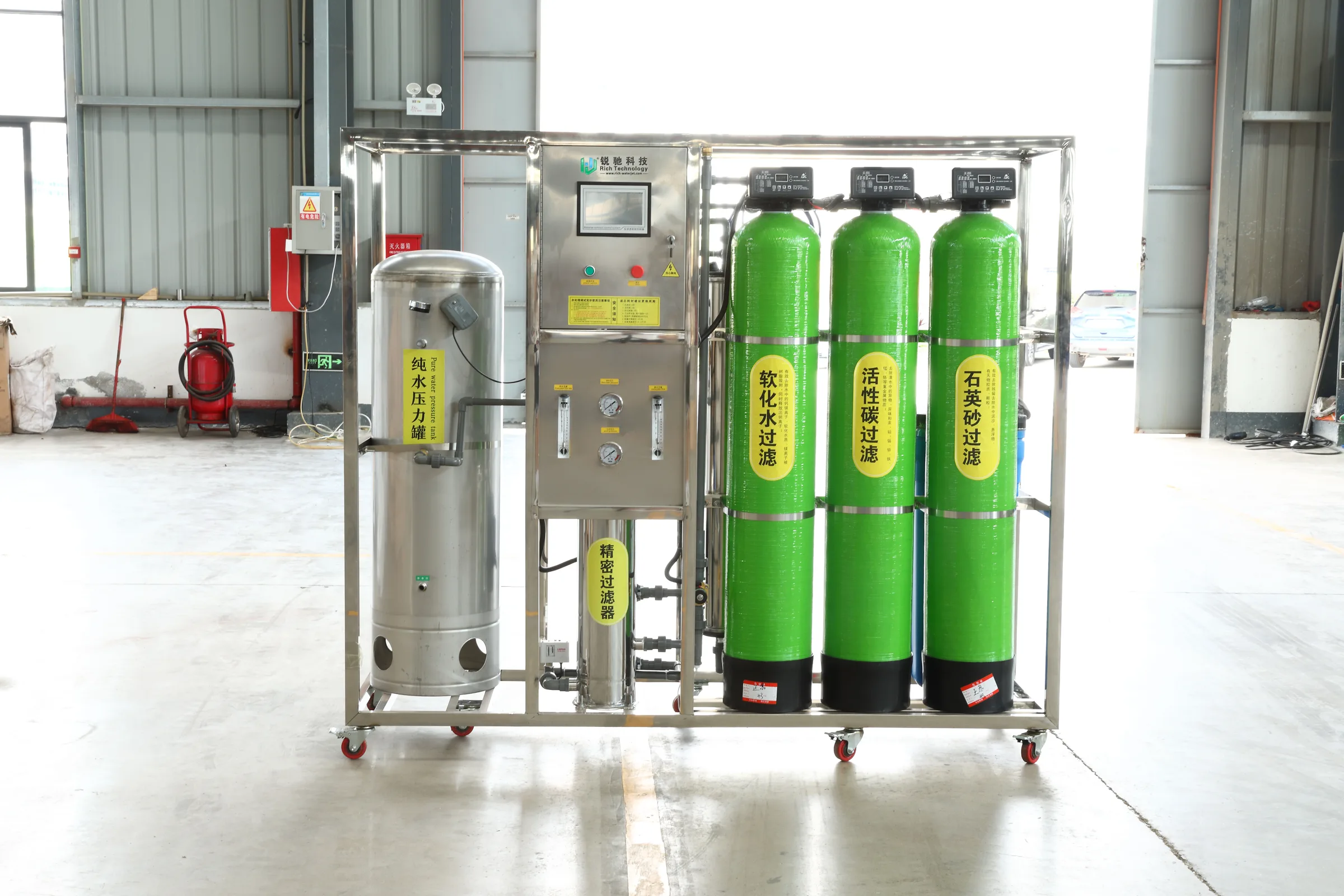

Abrasive & water systems
Pneumatic abrasive feeding with up to 441 lb (200 kg) storage, plus an inlet water-softener system to keep TDS at or below 100 mg/L.
Optional milling spindle on the same gantry
A second carriage carries a 24,000 rpm milling spindle beside the waterjet head, so sink cutouts, drainer grooves and internal holes are cut and milled in one setup without moving the slab.
6 materials, one platform.
The full spec.
| Pendulum / bevel angle | 0° – 60° |
| A-axis travel | ±65° |
| C-axis travel | Infinite rotation |
| Head rating | IP68 waterproof / dustproof |
| Spindle cooling | Water-cooled / AC cooling |
| Pressurization | Indirect hydraulic, dual oil circuit |
| Standard pressure | Up to 60,900 psi (420 MPa) |
| Ultra-high option | 87,000 psi (600 MPa) |
| Main motor | 60 hp (45 kW) |
| Diagnostics | PLC self-diagnosis + alarms |
| Abrasive feed | Pneumatic, 441 lb (200 kg) capacity |
| Inlet water | Softener system, TDS ≤ 100 mg/L |
| Controller | CNC, 19" industrial touchscreen, USB |
| Altimetry | Real-time height measurement |
| Code | X (mm · in) | Y (mm · in) | Structure |
|---|---|---|---|
| RC2015 | 78.7 in · 2000 mm | 59.1 in · 1500 mm | Bridge |
| RC3015 | 118.1 in · 3000 mm | 59.1 in · 1500 mm | Bridge |
| RC3020 | 118.1 in · 3000 mm | 78.7 in · 2000 mm | Bridge |
| RC4020 | 157.5 in · 4000 mm | 78.7 in · 2000 mm | Bridge |
| RC4025 | 157.5 in · 4000 mm | 98.4 in · 2500 mm | Bridge |
What it's used for.
