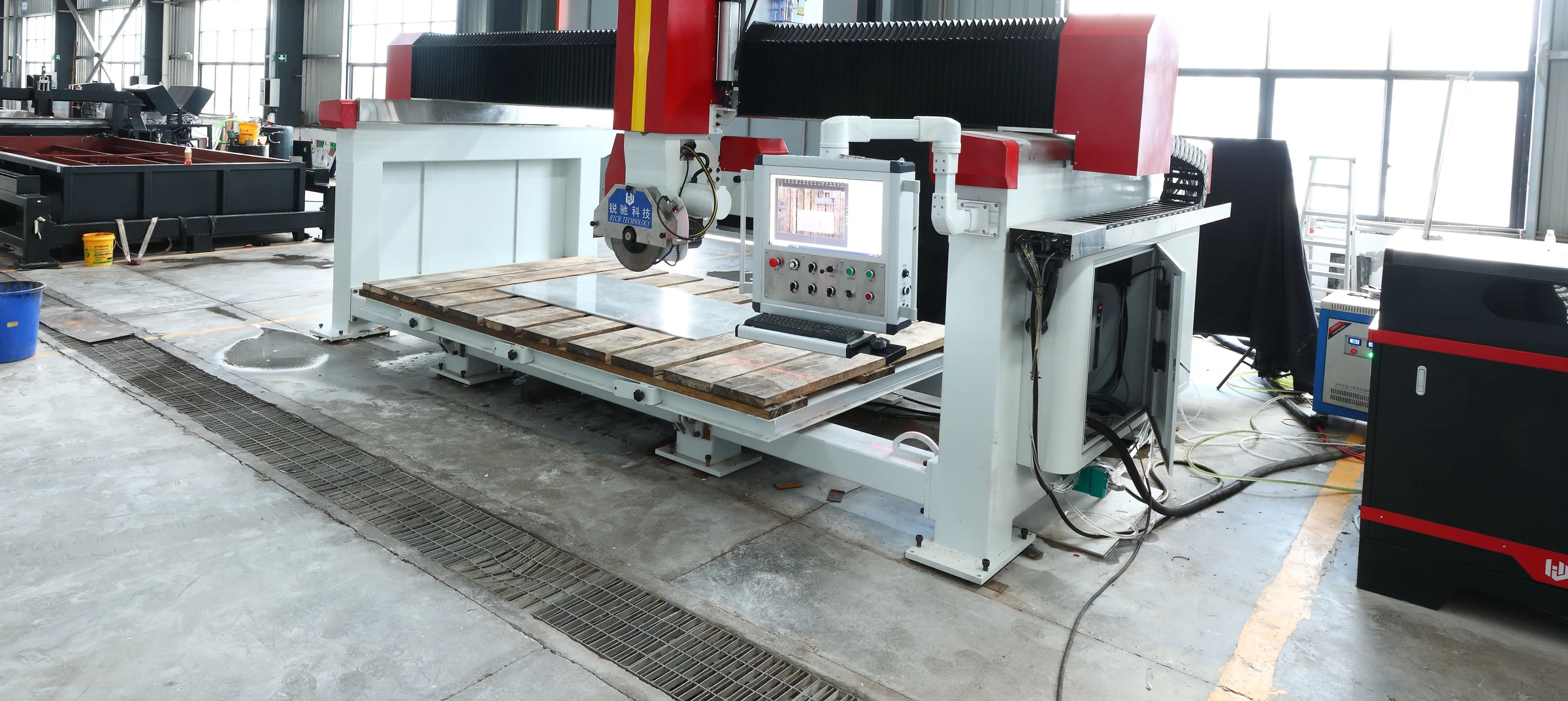

5-Axis Bridge Cutting + Waterjet
Bridge saw, AC waterjet and optional milling and grinding: a one-stop stone-processing center.
Installed in the continental US from $169,000 $147,900 The First Ten · price your build →

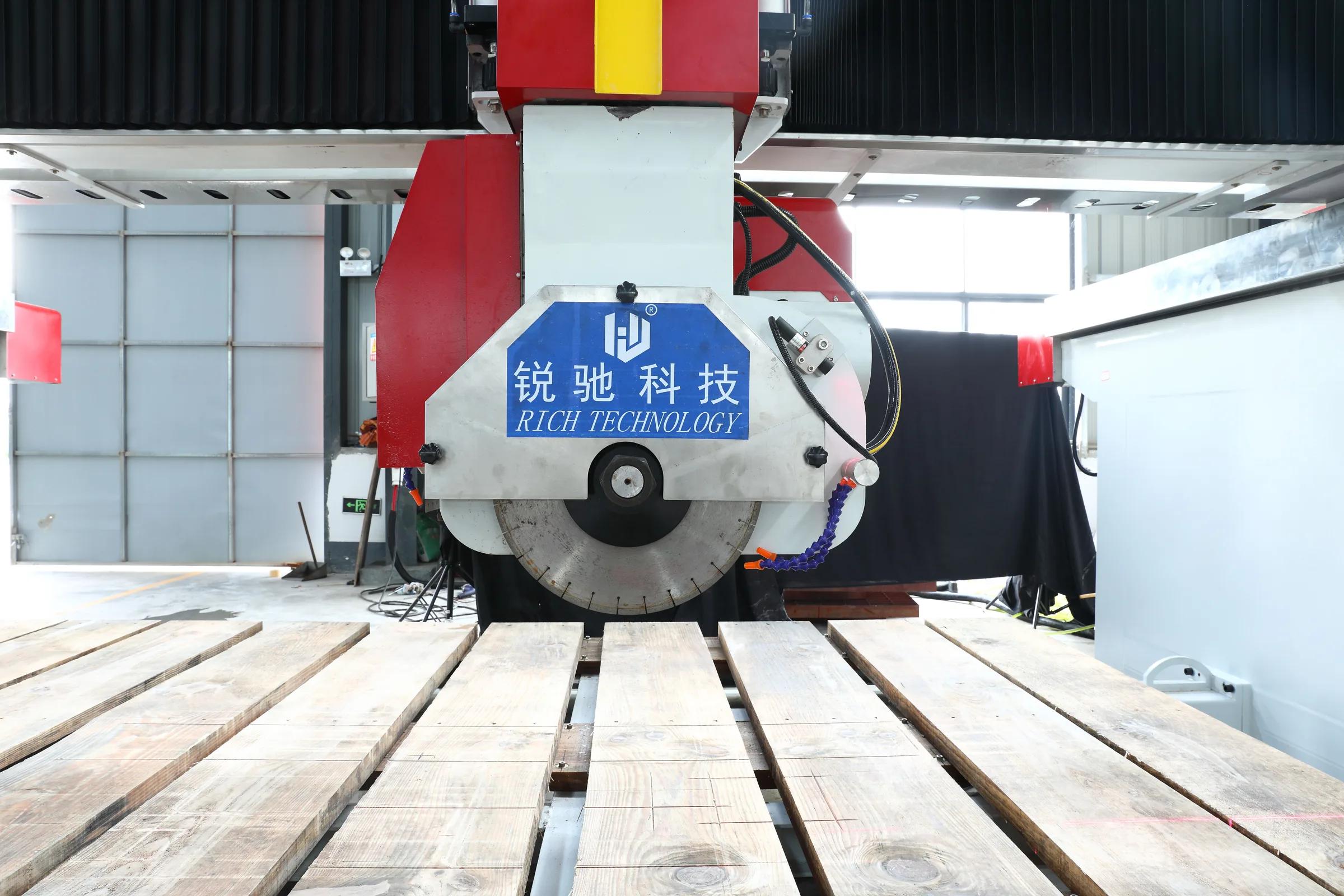

Bridge saw + AC waterjet in one
A circular saw and a five-axis AC waterjet head on the same machine: straight cuts and contoured waterjet work without moving the slab between machines.

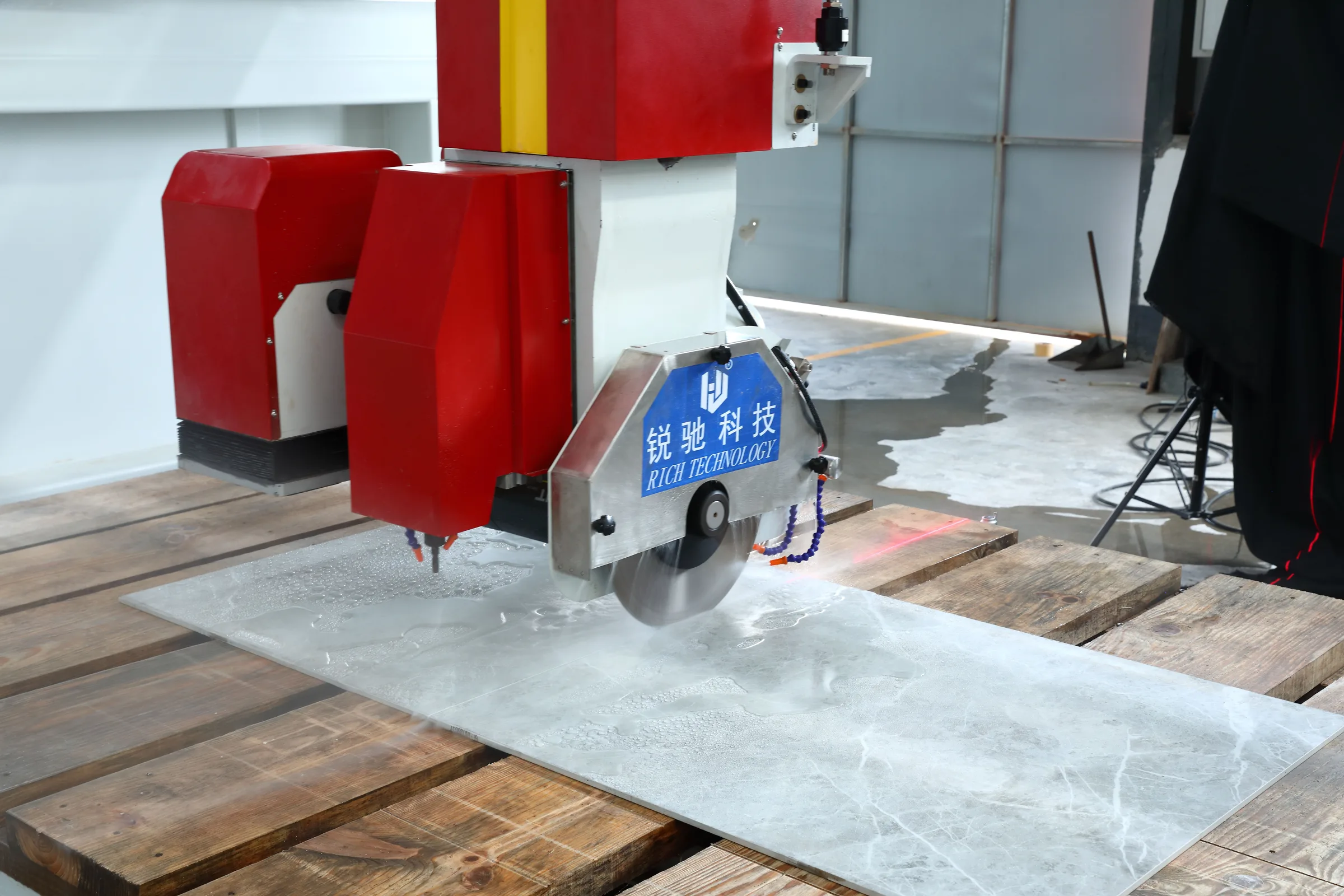

Infrared cut line on the slab
A linear infrared emitter projects the blade path onto the slab before the cut, so the operator sees the cut line on the stone, not just on the screen.
IP68 five-axis AC head
The waterproof AC head bevels 0°–60° for 45° splices and angled edges, with infinite C-axis rotation.

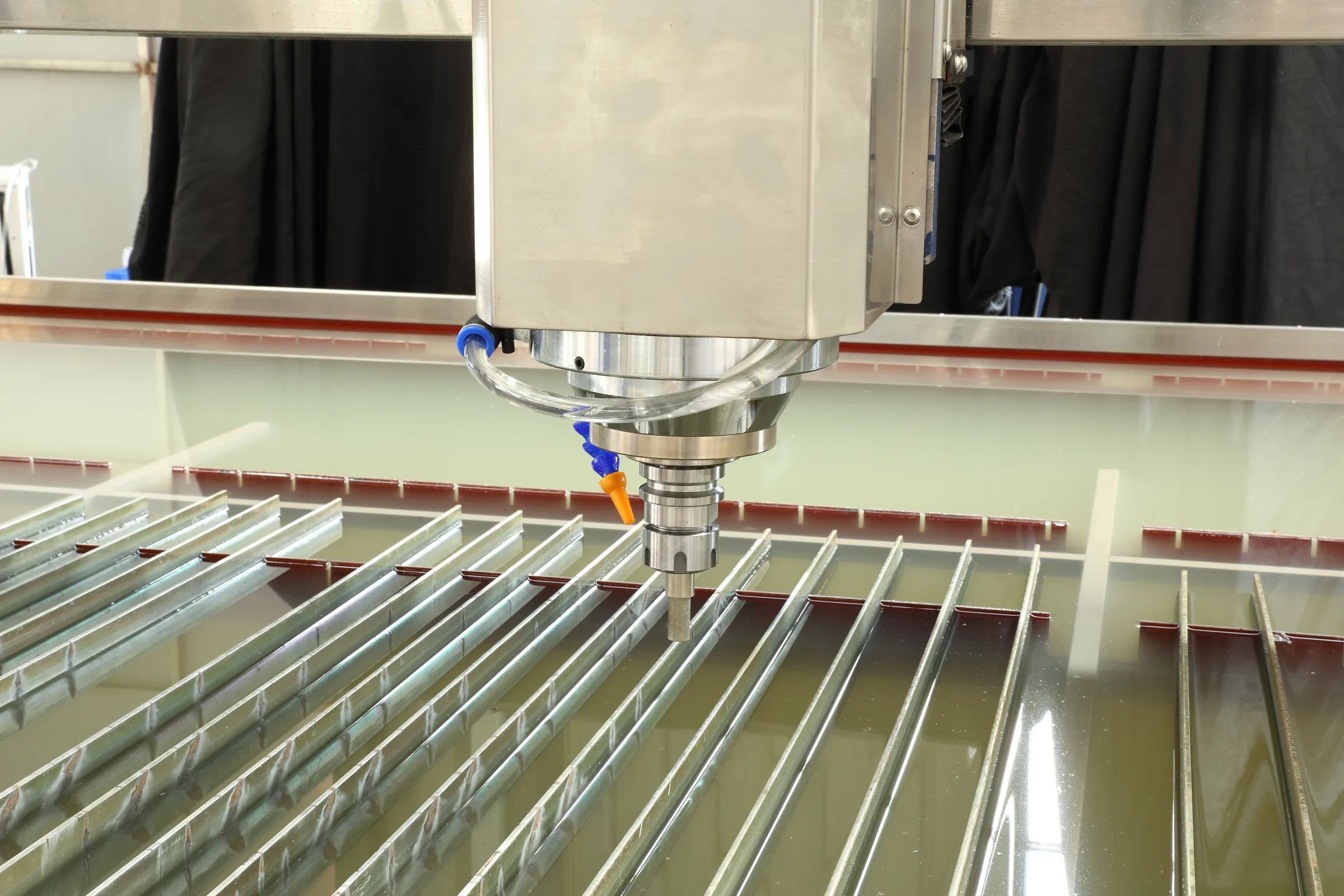

Optional milling head
Add a 6 hp (4.5 kW), 24,000 rpm milling spindle for drilling, internal holes, stone patterning and engraving.
Optional grinding & polishing head
A 20 hp (15 kW), 24,000 rpm grinding head takes edges and slabs from rough to fine finish: no second machine.

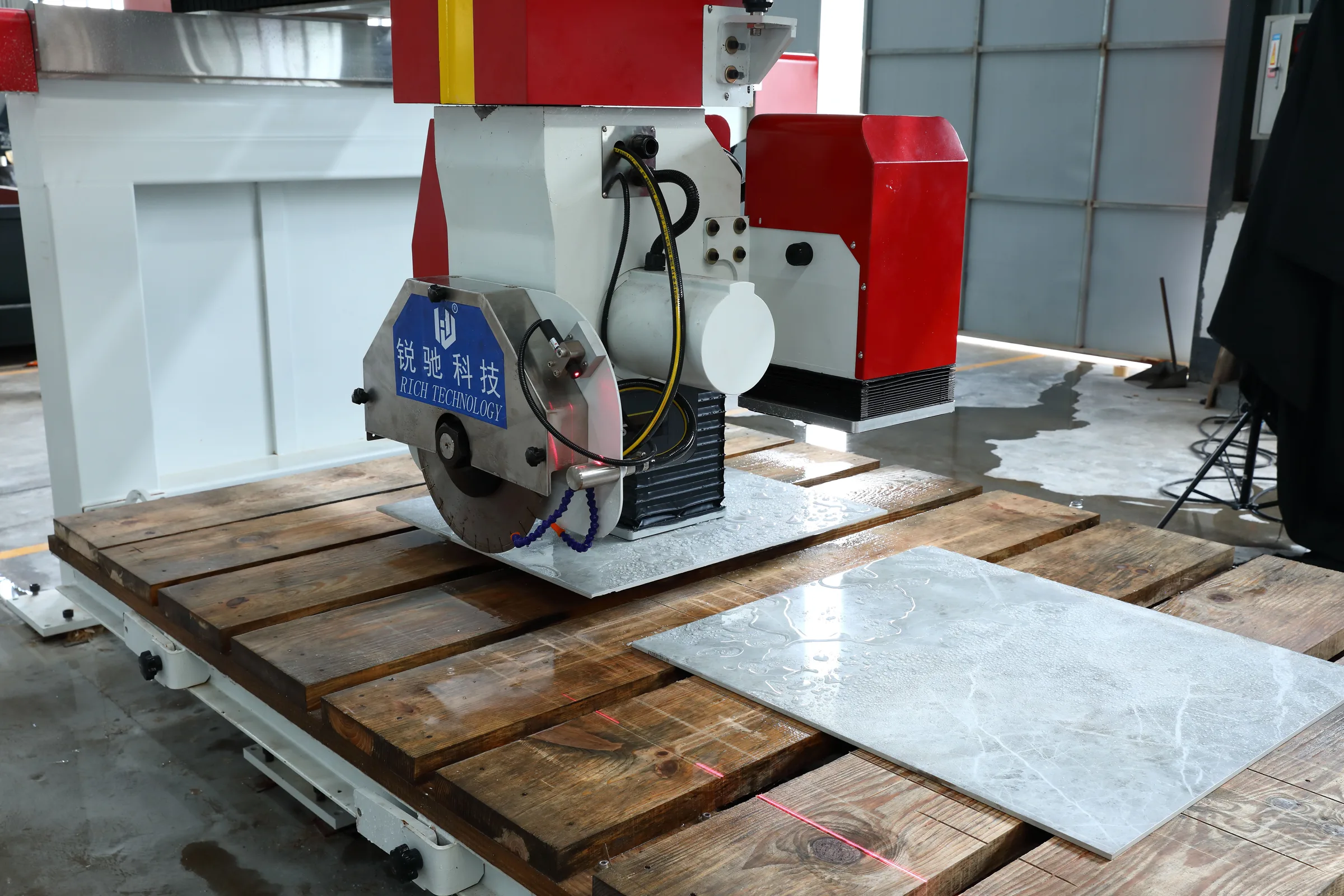

Suction-cup plate handling
An optional suction-cup moving platform handles plates without manual lifting, improving efficiency and reducing labor.
Digital camera system standard
A digital colour photographic system on every configuration: photograph the slab on the table and place cuts around veins, defects and offcuts on screen.
6 materials, one platform.
The full spec.
| X-axis stroke | 118.1 – 126 in (3000 – 3200 mm) |
| Y-axis stroke | 78.7 in (2000 mm) |
| Z-axis stroke | 13.8 in (350 mm) |
| Max workable thickness | 3.1 in (80 mm) |
| Saw blade diameter | Ø13.8 – 17.7 in (350 – 450 mm) |
| A-axis travel | ±90° |
| C-axis travel | ±185° |
| Spindle | 20 – 30 hp (15 – 22 kW), 3000 rpm |
| Cut-path display | Linear infrared emitter |
| AC waterjet head | A ±65°, C infinite rotation |
| Milling spindle (opt.) | 6 hp (4.5 kW), 24,000 rpm |
| Grinding head (opt.) | 20 hp (15 kW), 24,000 rpm |
| CNC system | Domestic or imported Italian |
| Overall weight | 11,000 – 22,000 lb (5 – 10 t) |
What it's used for.
Request a quote for the 5-Axis Bridge Cutting + Waterjet.
Tell us the materials, thickness and slab sizes you run, and we'll configure the machine and send a quote.
