V5-Axis Series
V5-Axis Waterjet
Five-axis (V5) waterjet for splice and ceramic work — a vertical cut edge that needs no further processing.
0–10°
Pendulum angle
150mm
5.9 in
Max thickness
up to 600MPa
Intensifier
3-point
Altimetry
01

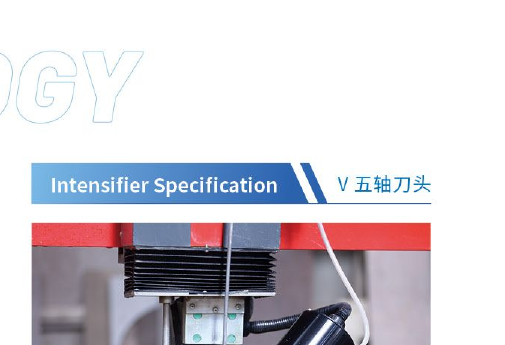

V5-axis splice head
A 0°–10° tilt keeps the cutting surface vertical, so splice material such as ceramic splice comes off the table with an edge that needs no further processing.
02

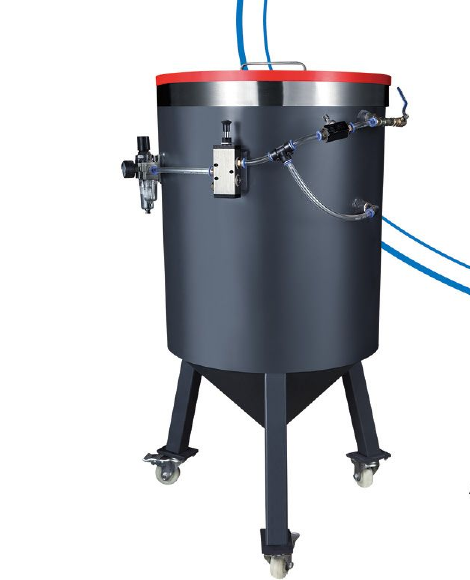

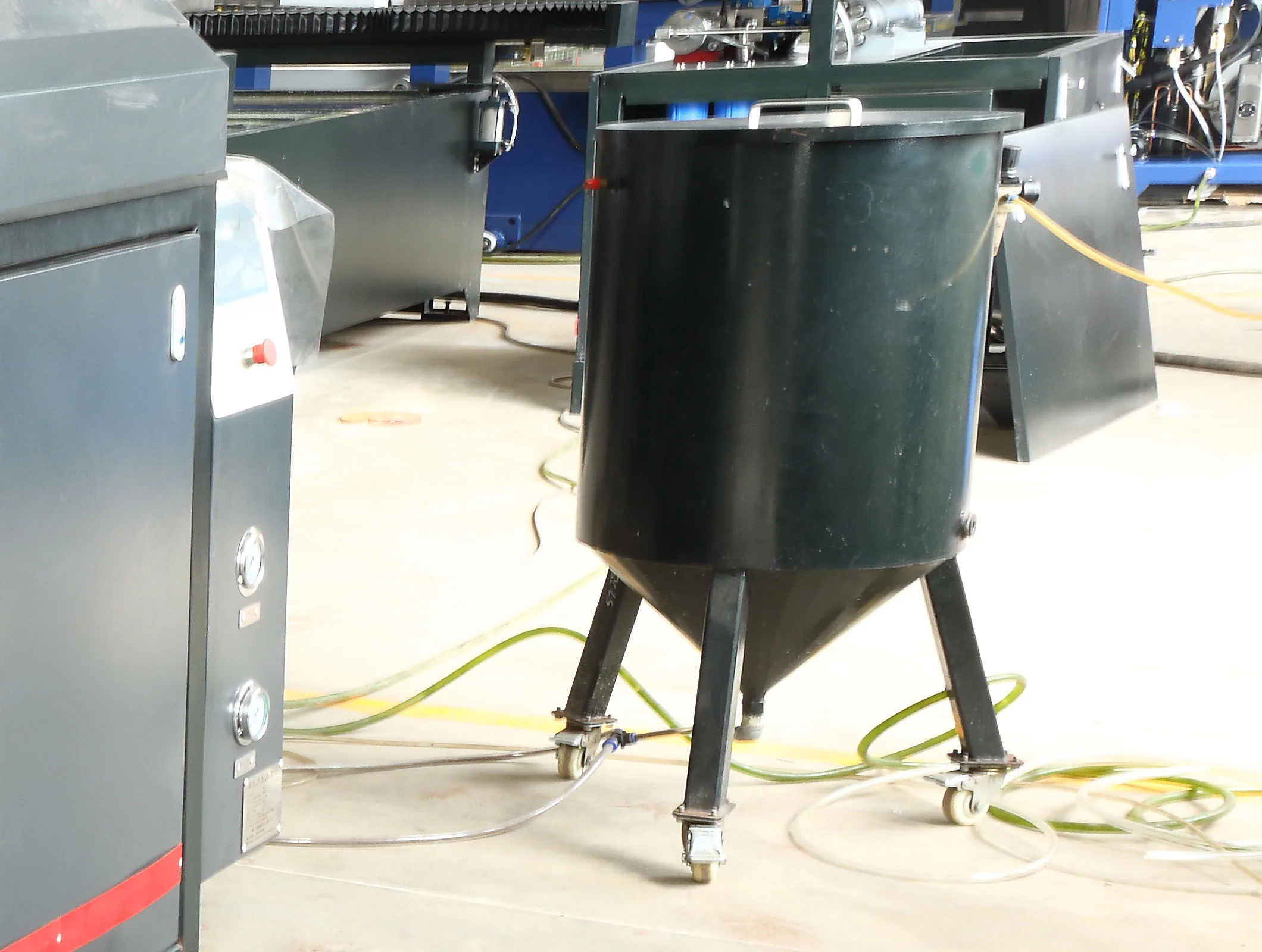

Pneumatic abrasive valve
A pneumatic abrasive valve prevents water returning to the sand bucket, keeping the abrasive dry and the feed reliable.
03
Ultra-high-precision cast-iron beam
A heavy cast-iron beam holds precision across the cutting envelope.
04
Three-point altimetry
Three-point height measurement compensates for undulation in the cut surface.
05
Intensifier up to 600 MPa
Standard or 600 MPa ultra-high-pressure intensifier, with PLC self-diagnosis.
What it cuts
6 materials, one platform.
Ceramic· up to 80 mm (3.1 in)
Porcelain Slab· up to 30 mm (1.2 in)
Marble & Granite· up to 100 mm (3.9 in)
Glass· up to 120 mm (4.7 in)
Aluminum· up to 150 mm (5.9 in)
Steel· up to 80 mm (3.1 in)

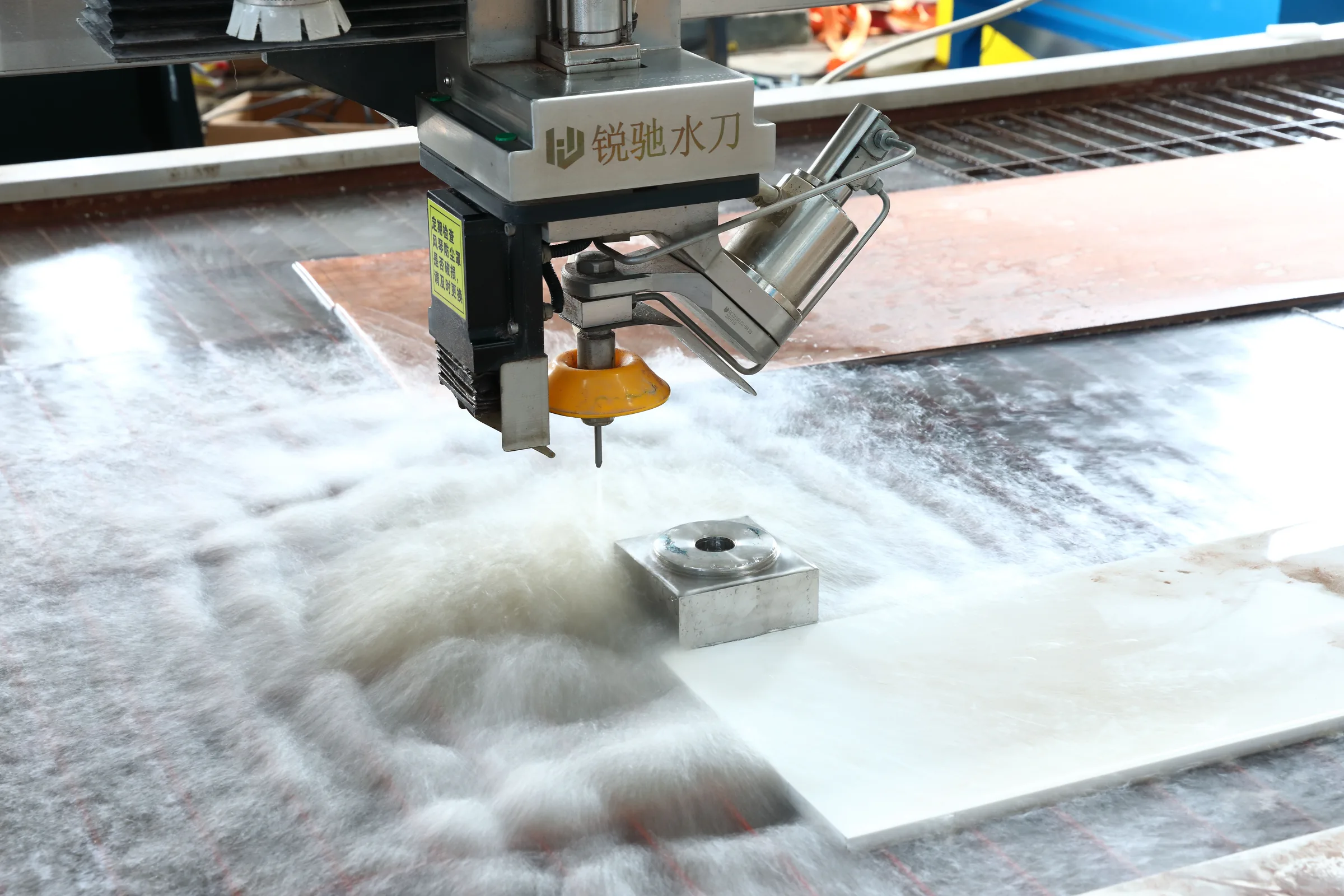

Off the table
Real parts, real materials.
Specifications
The full spec.
Cutting head (V5-axis)
| Pendulum angle | 0° – 10° |
| Splice edge | No further processing |
| Spindle cooling | Water-cooled |
Structure & control
| Beam | Ultra-high-precision cast iron |
| Altimetry | Three-point, real time |
| Abrasive valve | Pneumatic, no water return |
| Controller | CNC, 19" industrial touchscreen |
Intensifier / supporting
| Pressurization | Indirect hydraulic, dual oil circuit |
| Ultra-high option | 600 MPa |
| Abrasive feed | Pneumatic, 200 kg capacity |
| Inlet water | Softener, TDS ≤ 100 mg/L |
Cutting head
V5-axis (0–10°)3-axis (vertical)
Intensifier
Standard600 MPa
Add-ons
Auto abrasive supplyWater softenerWaste-abrasive cleaning
Applications
What it's used for.
Request a quote for the V5-Axis Waterjet.
Tell us the materials, thickness and slab sizes you run, and we'll configure the machine and send a quote.
V5-Axis Waterjet
Five-axis · IP68 head · up to 600 MPa
