Real parts, real materials, real edges.
Filmed and photographed on our floor in Foshan. Every sample names the material, the thickness range and the machine it came off — so you can match it to your own work.
Blue marble, contour-cut pieces
Straight off the slats. No chipping on the veined edge, no secondary finishing.
Cut on the AC 5-Axis Waterjet →AC head cutting marble slab
The 0–60° AC head following a contour on a full slab.

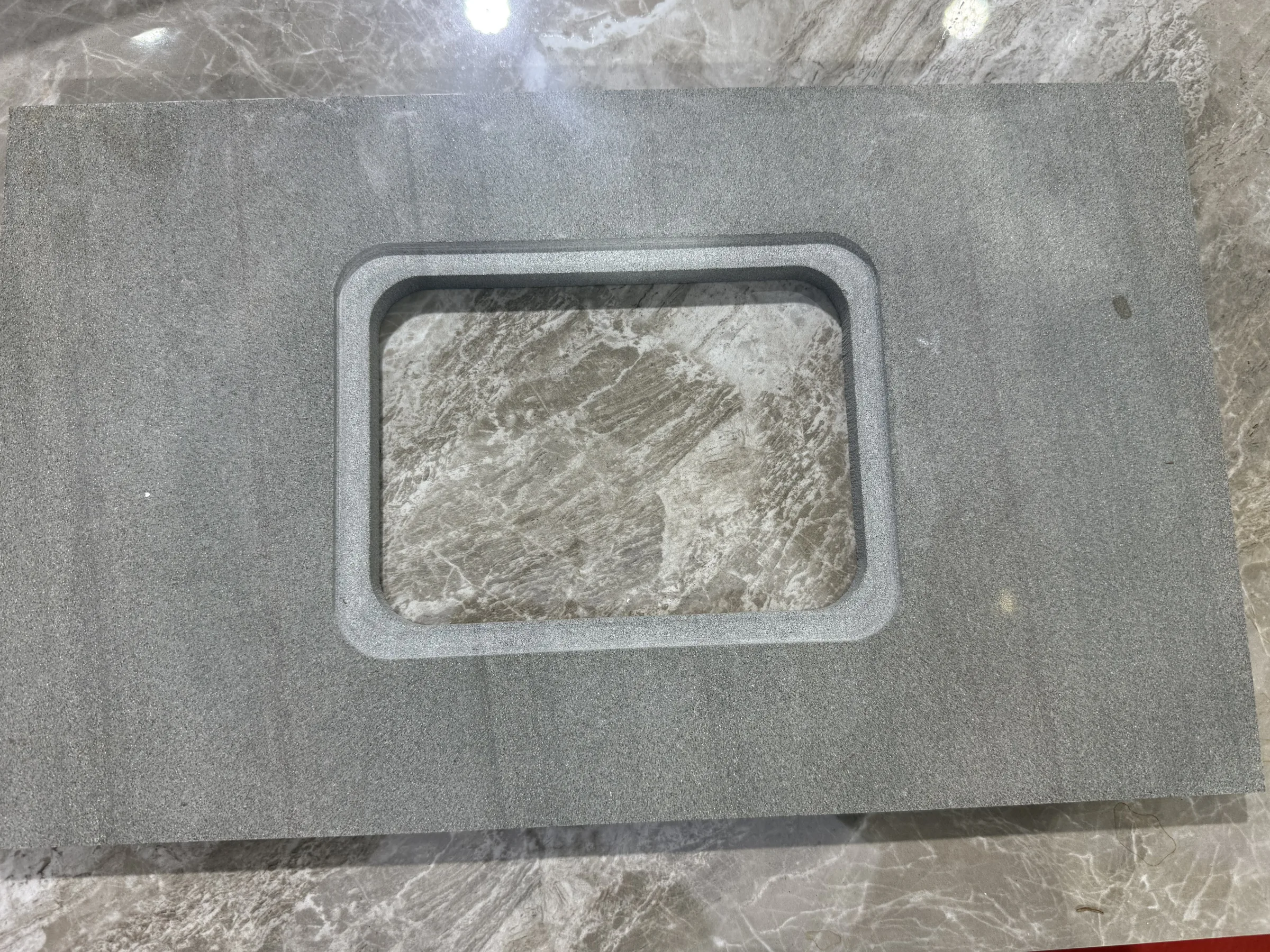

Cut on the AC 5-Axis Waterjet →Sink cutout with milled drainer grooves
Waterjet cuts the opening, the 24,000 rpm spindle mills the grooves — one setup.
Cut on the AC 5-Axis + milling spindle →

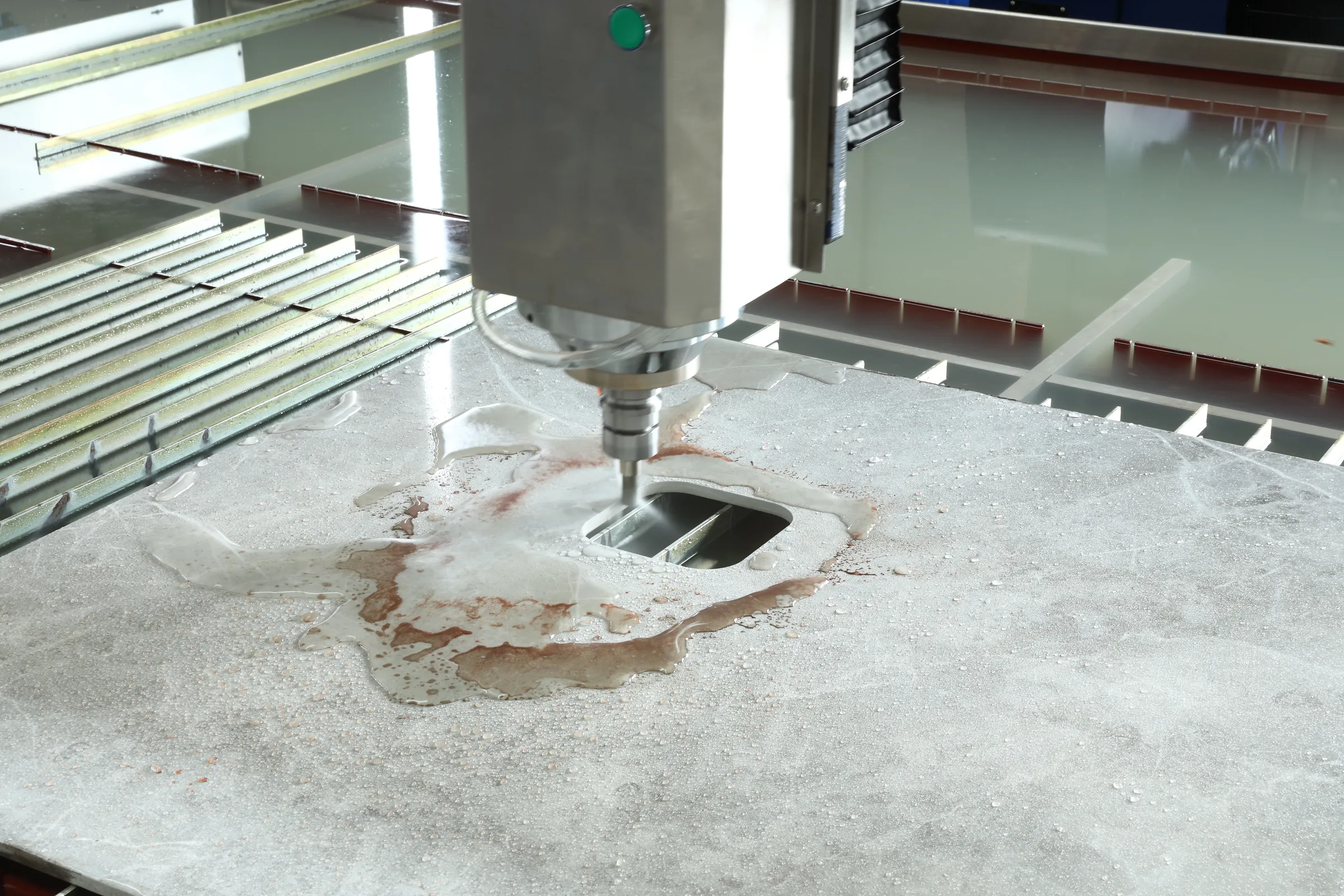

Milling spindle on a sink opening
Second carriage on the same gantry; the slab never moves between operations.
Cut on the AC 5-Axis + milling spindle →Square frame cut from tile, lifted off
Inner square and frame both usable; the kerf is the only material lost.
Cut on the AC 5-Axis Waterjet →Decorative pattern in tile
Tight radii in a brittle material without cracking.
Cut on the AC 5-Axis Waterjet →
Carbon steel block, straight cut edge
Cut edge shown as it left the table; no heat-affected zone, no burr.
Cut on the AC 5-Axis Waterjet →

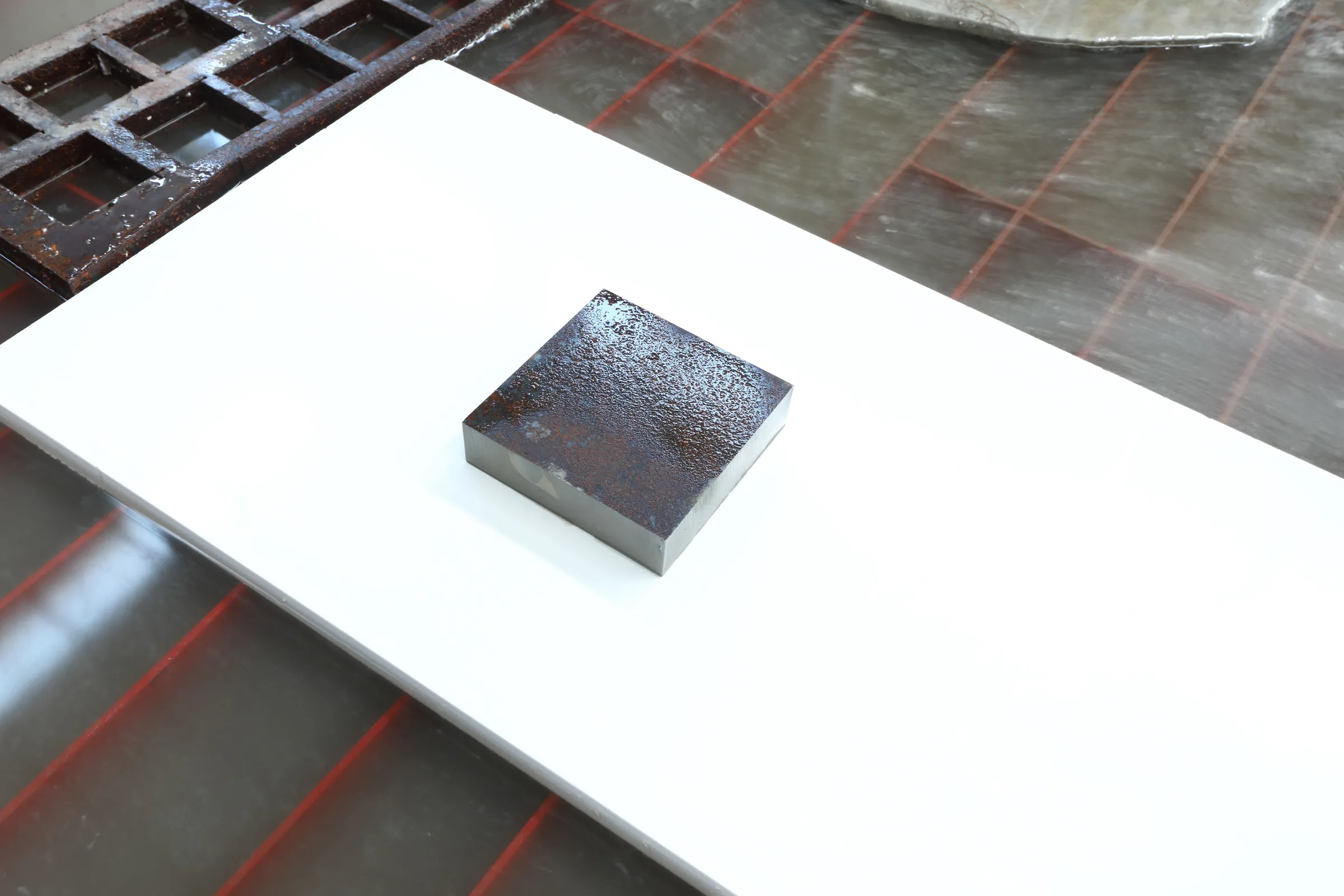

Carbon steel block, face
Same block; the finish is uniform through the full thickness.
Cut on the 3-Axis Waterjet →
3-axis head, 0.8 in (20 mm) plate
Vertical head, production plate work.
Cut on the 3-Axis Waterjet →Porcelain sink cutout, straight off the table
The frame and the cutout held up as they came off the slats: clean edges, no chipping.
Cut on the AC 5-Axis Waterjet →
Glass: sculpted parts and basin
From the Rich catalog sample set.
Cut on the V5-Axis Waterjet →
Aluminum: perforated and lattice panels
From the Rich catalog sample set.
Cut on the 3-Axis Waterjet →
Steel: gears, impellers, solid block
From the Rich catalog sample set.
Cut on the 3-Axis Waterjet →
Marble: medallions and inlay floors
From the Rich catalog sample set.
Cut on the AC 5-Axis Waterjet →
Ceramic: patterned tile inlays
From the Rich catalog sample set.
Cut on the V5-Axis Waterjet →
Porcelain slab: countertops and tables
From the Rich catalog sample set.
Cut on the 5-Axis Bridge + Waterjet →Send us your part. We cut it and send it back.
A drawing or a photo and the material is enough. You get the cut sample and the cycle time, before you buy anything.
