Dual-Head Series
Dual-Head 3-Axis
Two three-axis cutting heads on one machine — single- or dual-intensifier.
2
Cutting heads
1 or 2
Intensifiers
150mm
5.9 in
Max thickness
0°
Pendulum angle
01

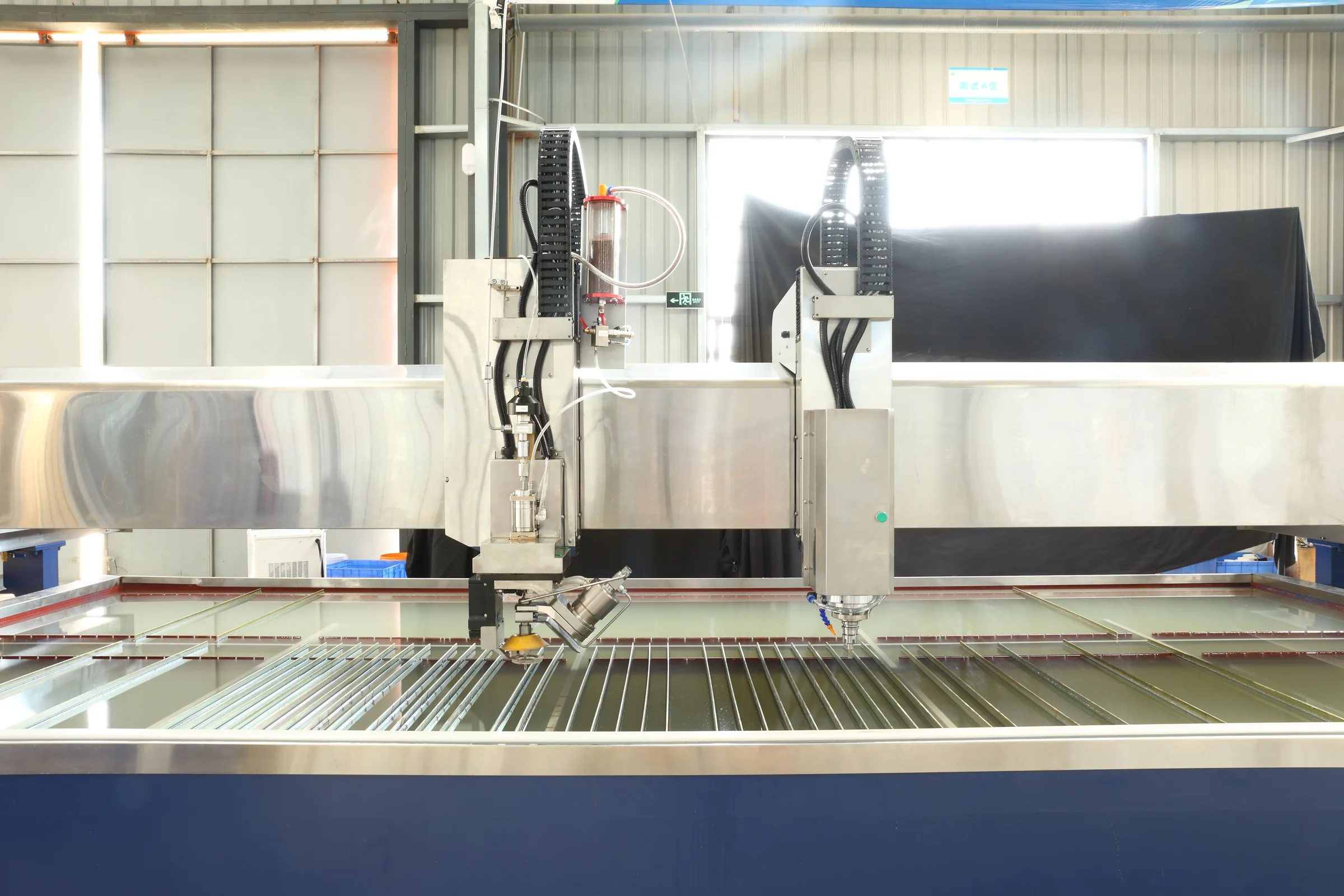

Two heads, one machine
Two three-axis heads cut in parallel — the same program runs twice per pass for repeat parts.
02

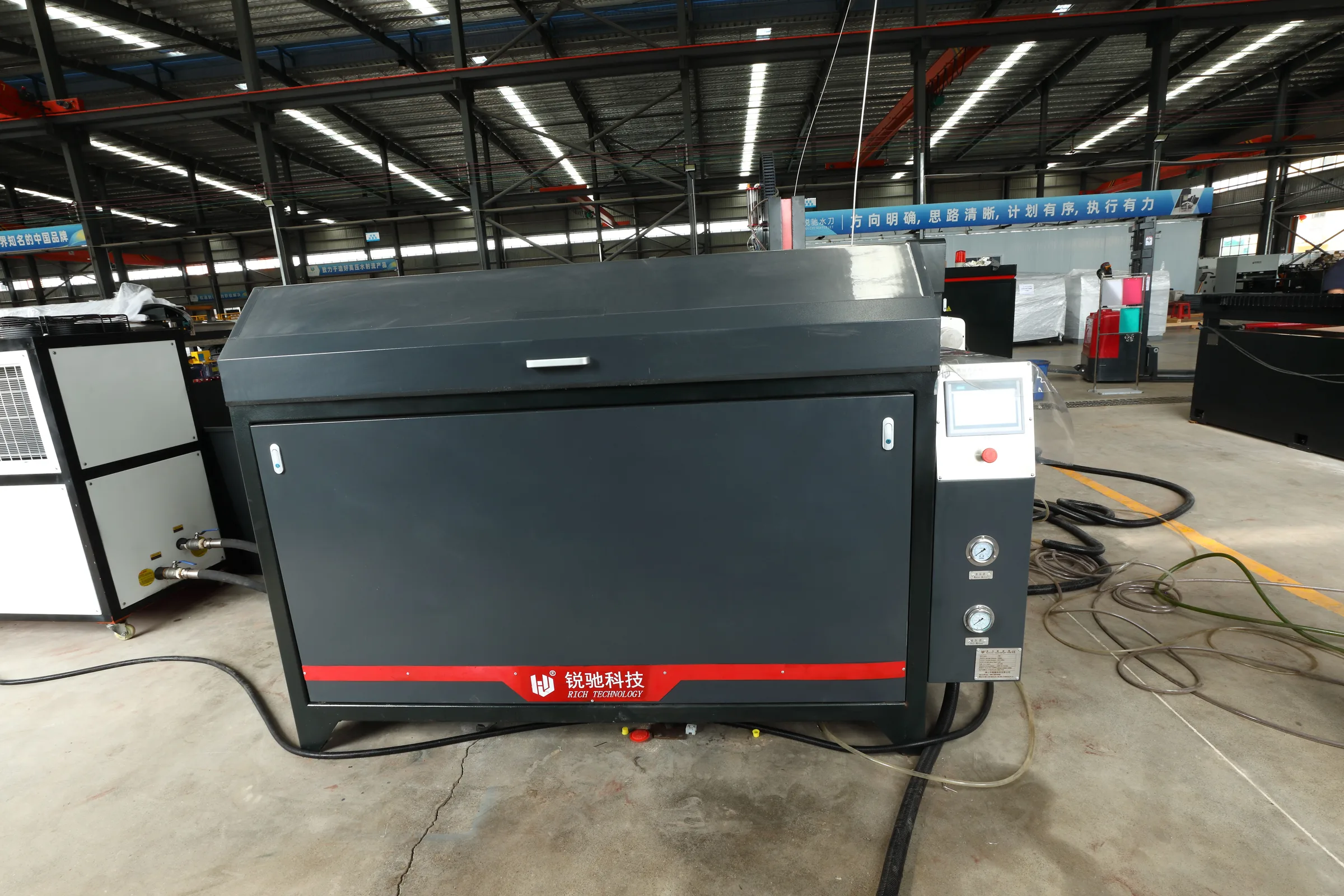

Single or dual intensifier
Run a single head on a single intensifier, or two heads on two intensifiers — chosen freely to match output.
03
Easy-maintenance heads
The three-axis heads are simple to access and service, keeping the machine on the floor.
04
PLC control & diagnostics
A PLC interface controls the equipment and flags alarms, with self-diagnosis on the intensifier.
What it cuts
6 materials, one platform.
Marble & Granite· up to 100 mm (3.9 in)
Porcelain Slab· up to 30 mm (1.2 in)
Ceramic· up to 80 mm (3.1 in)
Glass· up to 120 mm (4.7 in)
Aluminum· up to 150 mm (5.9 in)
Steel· up to 80 mm (3.1 in)

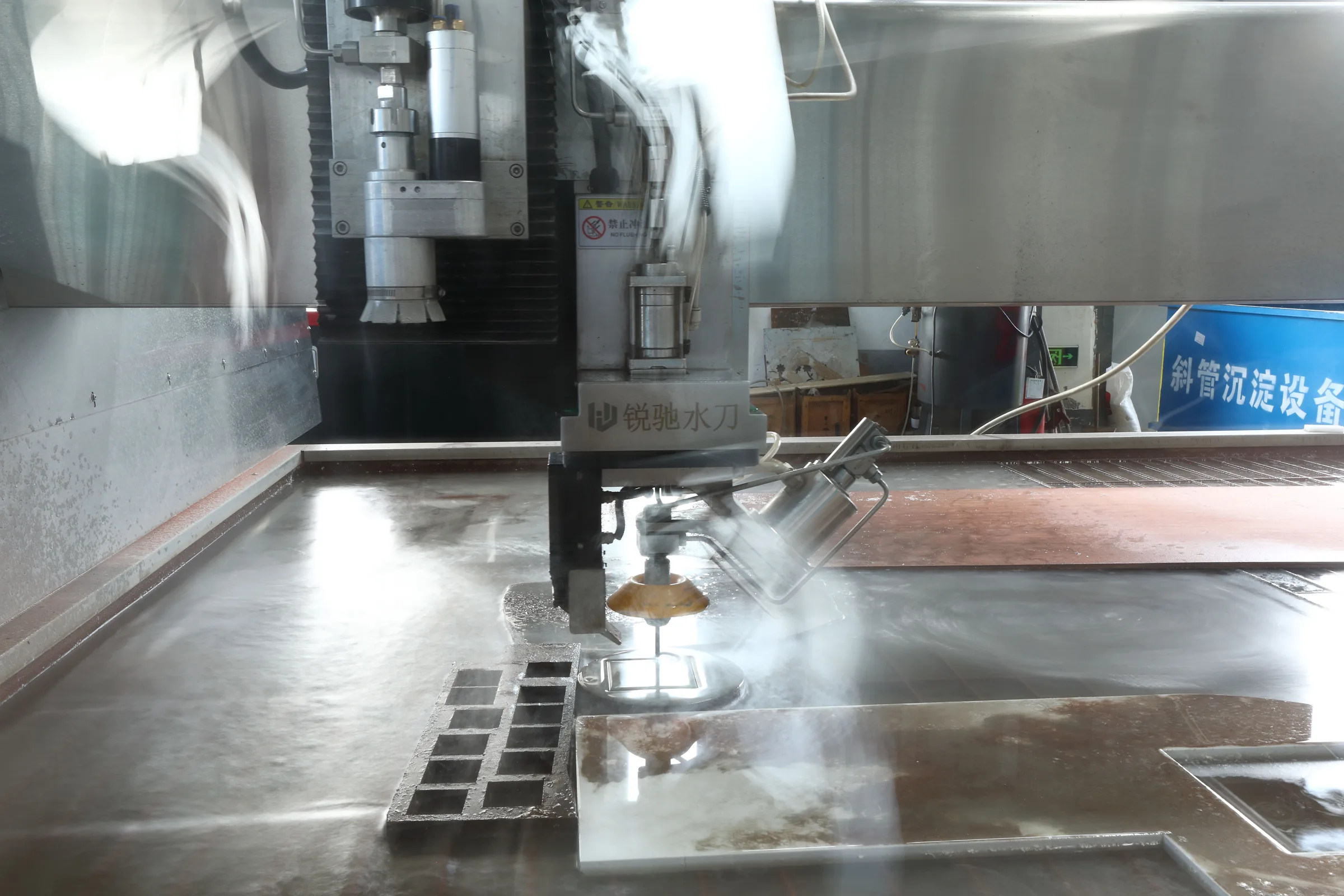

Off the table
Real parts, real materials.
Specifications
The full spec.
Cutting heads
| Heads | 2 × 3-axis |
| Pendulum angle | 0° (vertical) |
| Spindle cooling | Water-cooled |
Power & control
| Intensifier | Single, or dual (one per head) |
| Pressurization | Indirect hydraulic, dual oil circuit |
| Ultra-high option | 600 MPa |
| Controller | PLC + CNC touchscreen |
Supporting systems
| Abrasive feed | Pneumatic, 200 kg capacity |
| Inlet water | Softener, TDS ≤ 100 mg/L |
| Altimetry | Three-point, real time |
Configuration
Single head + single intensifierDual head + dual intensifier
Intensifier
Standard600 MPa
Add-ons
Auto abrasive supplyWater softenerWaste-abrasive cleaning
Applications
What it's used for.
Request a quote for the Dual-Head 3-Axis.
Tell us the materials, thickness and slab sizes you run, and we'll configure the machine and send a quote.
