Large-Format Series

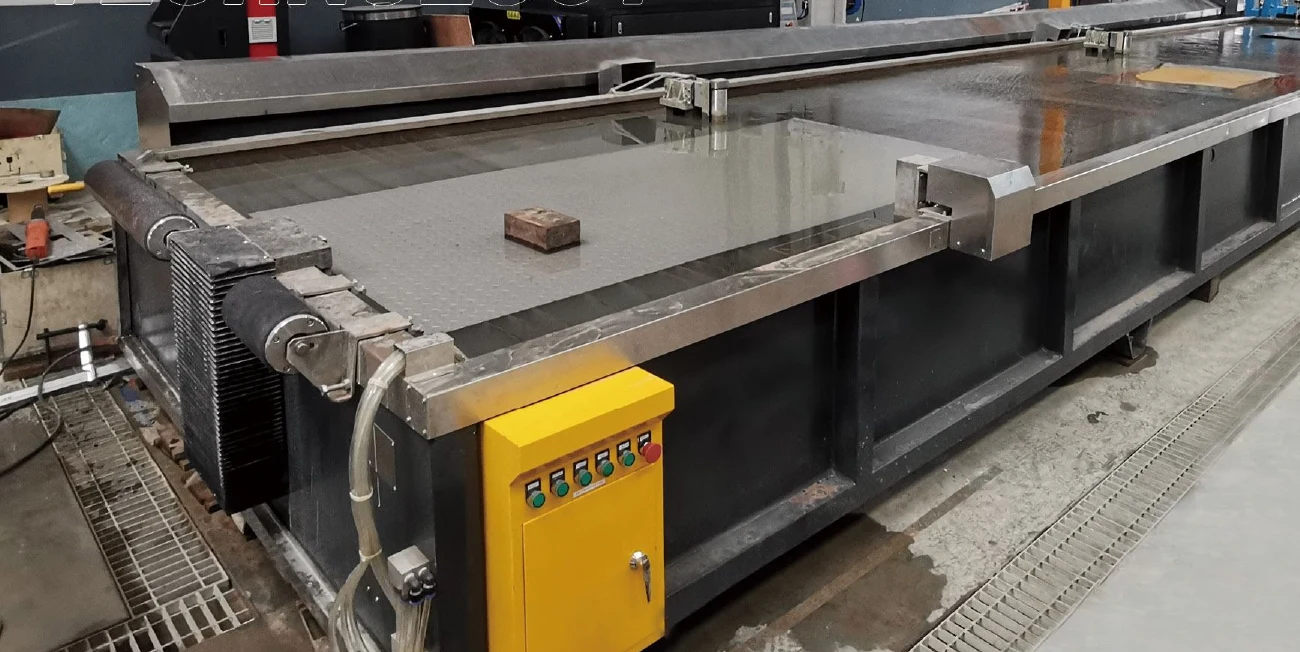

Jumbo & Large-Format Waterjet
Oversized waterjet cutting: tables to 2.3 × 11.3 m, in bridge or fly-arm structures.
Installed in the continental US from $109,500 $95,900 The First Ten · price your build →
8 × 37ft
2.3 × 11.3 m
Max table
10
Size codes
Bridge / fly-arm
Structure
5.9in
150 mm
Max thickness
01
Oversized cutting tables
Standard size codes from RC1212 (1.2 × 1.2 m) up to RC23113 (2.3 × 11.3 m) for jumbo slabs and long parts.
02
Bridge and fly-arm structures
Bridge structures for wide work and fly-arm structures for very long, narrow envelopes.
03

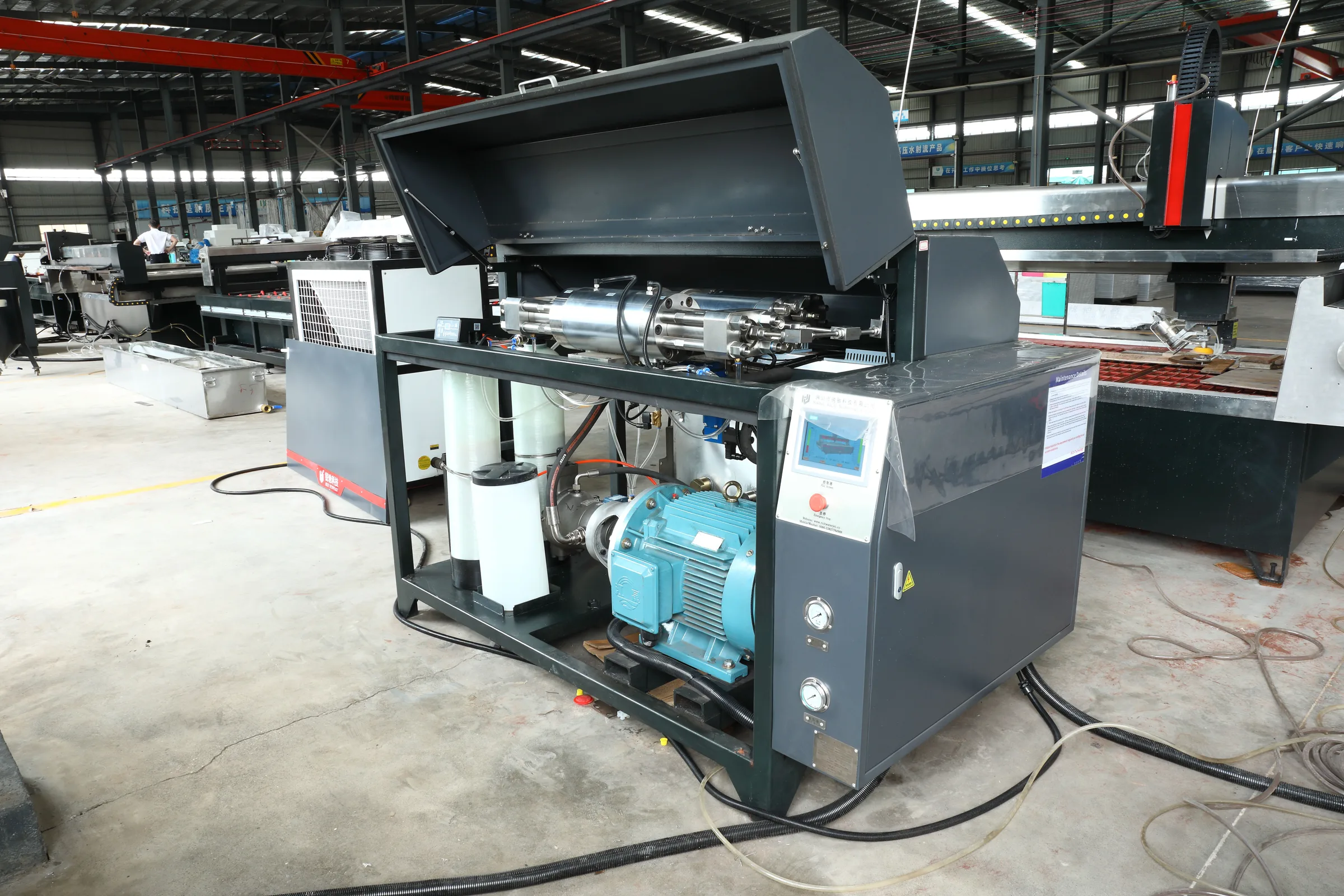

Same heads & intensifiers
Runs the same three-axis, V5 or AC five-axis heads and standard or 87,000 psi (600 MPa) intensifiers as the rest of the line.
04
CNC control
19-inch industrial touchscreen CNC with USB and remote support.
What it cuts
6 materials, one platform.
Marble & Granite· up to 3.9 in (100 mm)
Porcelain Slab· up to 1.2 in (30 mm)
Glass· up to 4.7 in (120 mm)
Aluminum· up to 5.9 in (150 mm)
Steel· up to 3.1 in (80 mm)
Ceramic· up to 3.1 in (80 mm)
Specifications
The full spec.
Format
| Smallest table | 47.2 × 47.2 in (1200 × 1200 mm) (RC1212) |
| Largest table | 90.6 × 444.9 in (2300 × 11300 mm) (RC23113) |
| Structures | Bridge / fly-arm |
| Max thickness | 5.9 in (150 mm) (aluminum) |
Heads & power
| Cutting head | 3-axis / V5 / AC 5-axis |
| Intensifier | Standard / 87,000 psi (600 MPa) |
| Altimetry | Three-point, real time |
| Controller | CNC, 19" industrial touchscreen |
Structure
BridgeFly-arm
Cutting head
3-axisV5-axisAC 5-axis
Intensifier
Standard87,000 psi (600 MPa)
Cutting table sizes
| Code | X (mm · in) | Y (mm · in) | Structure |
|---|---|---|---|
| RC1212 | 47.2 in · 1200 mm | 47.2 in · 1200 mm | Fly-arm |
| RC2015 | 78.7 in · 2000 mm | 59.1 in · 1500 mm | Bridge |
| RC2515 | 98.4 in · 2500 mm | 59.1 in · 1500 mm | Bridge |
| RC3015 | 118.1 in · 3000 mm | 59.1 in · 1500 mm | Bridge |
| RC3020 | 118.1 in · 3000 mm | 78.7 in · 2000 mm | Bridge |
| RC3220 | 126 in · 3200 mm | 78.7 in · 2000 mm | Bridge |
| RC4020 | 157.5 in · 4000 mm | 78.7 in · 2000 mm | Bridge |
| RC4025 | 157.5 in · 4000 mm | 98.4 in · 2500 mm | Bridge |
| RC6030S | 118.1 in · 3000 mm | 236.2 in · 6000 mm | Bridge |
| RC23113 | 90.6 in · 2300 mm | 444.9 in · 11300 mm | Fly-arm |
Larger formats to 2.3 × 11.3 m available.
Applications
What it's used for.
Request a quote for the Jumbo & Large-Format Waterjet.
Tell us the materials, thickness and slab sizes you run, and we'll configure the machine and send a quote.
